IP69K Wireless Backup Camera Systems With 7 Inch IPS Monitor Kit
Wireless Backup Waterproof IP69K Cameras Systems With 7 Inch IPS Monitor Kit
Specification:
Monitor
| Screen Size | 7 inch Color Monitor |
| Operating Frequency | 2.4GHz~2.4835GHz |
| Resolution | 1024 x 3(RGB) x 600 |
| Video Format | MP4 |
| Built-in DVR recording | Holding up to 16G/32G/64G/128G SD Cards |
| Brightness | 900 cd/m² |
| Channel | 4 channels Max |
| Transmission Distance | 1650ft |
| Power consumption | Max:6W |
| Power Supply | DC 12-24V |
| Outer Dimension | 184mm(W)X129mm(H)X26mm(D) |
Camera
| Viewing Angle | 120° |
| Image Device | 1/2.7" COMS (HD) |
| IR Control | SMART IR-CUT 650nm Day/850nm Night Auto |
| Waterproof level | IP69k |
| Transmission Distance(barrier free) | 1650ft |
| Night Vision Distance | 33ft |
| Latency | less than 200ms |
| Power Supply | DC 12-32V |
| Power Consumption | 150mA/12V |
| Transmission Power | 26dB |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Spread Spectrum | FHSS |
| Minimum Illumination | 0Lux |
FX922T(Smallest camera)
| Image Sensor | 1/2.7’’COMS HD |
| Viewing Angle | 160° |
| AGC | Auto |
| BLC | Auto |
| White Balance | Auto |
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Distance(barrier free) | 300m(984ft) |
| Transmission Power | 23dB |
| Latency | Less 200ms |
| Spread Spectrum | FHSS |
| RF Bit Rate | 12Mbps |
| Minimum Illumination | 0Lux |
| Night vision distance | 4-5m |
| Power supply | DC 10-18V |
| Waterproof rating | IP69K |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Size | 85x28x27.5mm |
| Weight | 90g |
Features:
1. 7 inch RV Dual-channel 720P digital high-definition wireless DVR set.
2. Support multi-channel camera display, can support up to 4 channel split screen at the same time.
3. 7 inch IPS screen 1024*600 resolution 900cd/ m².HD highlight to make night vision more easy observation and display.
4. Self-defining reversing line setting,make the sense of distance approach reality.
5. Camera use Structural waterproofing process, waterproof IP69K, waterproof droplets, anti-fog, dust-proof, scratch-proof.
6. IR-CUT smart switch night vision, night vision distances can reach up to 10m.
7. The FX922T camera power cord use flat wire design, and use for driving wireless rear-view recorder by connecting the license plate light.(Can install car license plate and RV side door).

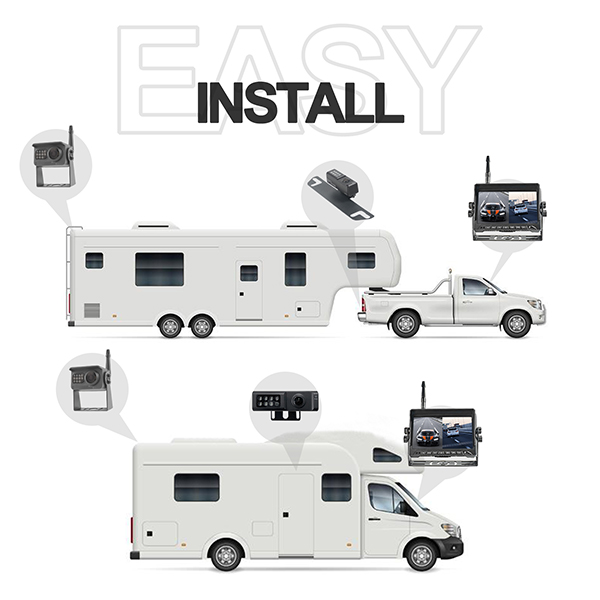

8. Apply to vehicles: RV, Trailer RV, Trailer.
